A Formal Specification
of the EVM in Sail

Tau Lepton

zkEVM research engineer · Ethereum Foundation

evm-sail · Tau Lepton
01 · Motivation

zkEVM Verification Problem

evm-sail · Tau Lepton
04 · Verification scope

What exactly are we verifying?

Block kernel
Does the block apply the right transactions and system operations?
Transaction kernel
Is the transaction valid, executed, and settled correctly?
EVM machine
Does the program execute according to the EVM rules?

Each scope needs its own correctness claim—and a connection to the others.

Conceptual verification boundaries, not existing package names. Sources: Model structure.
evm-sail · Tau Lepton
02 · Sail and the model

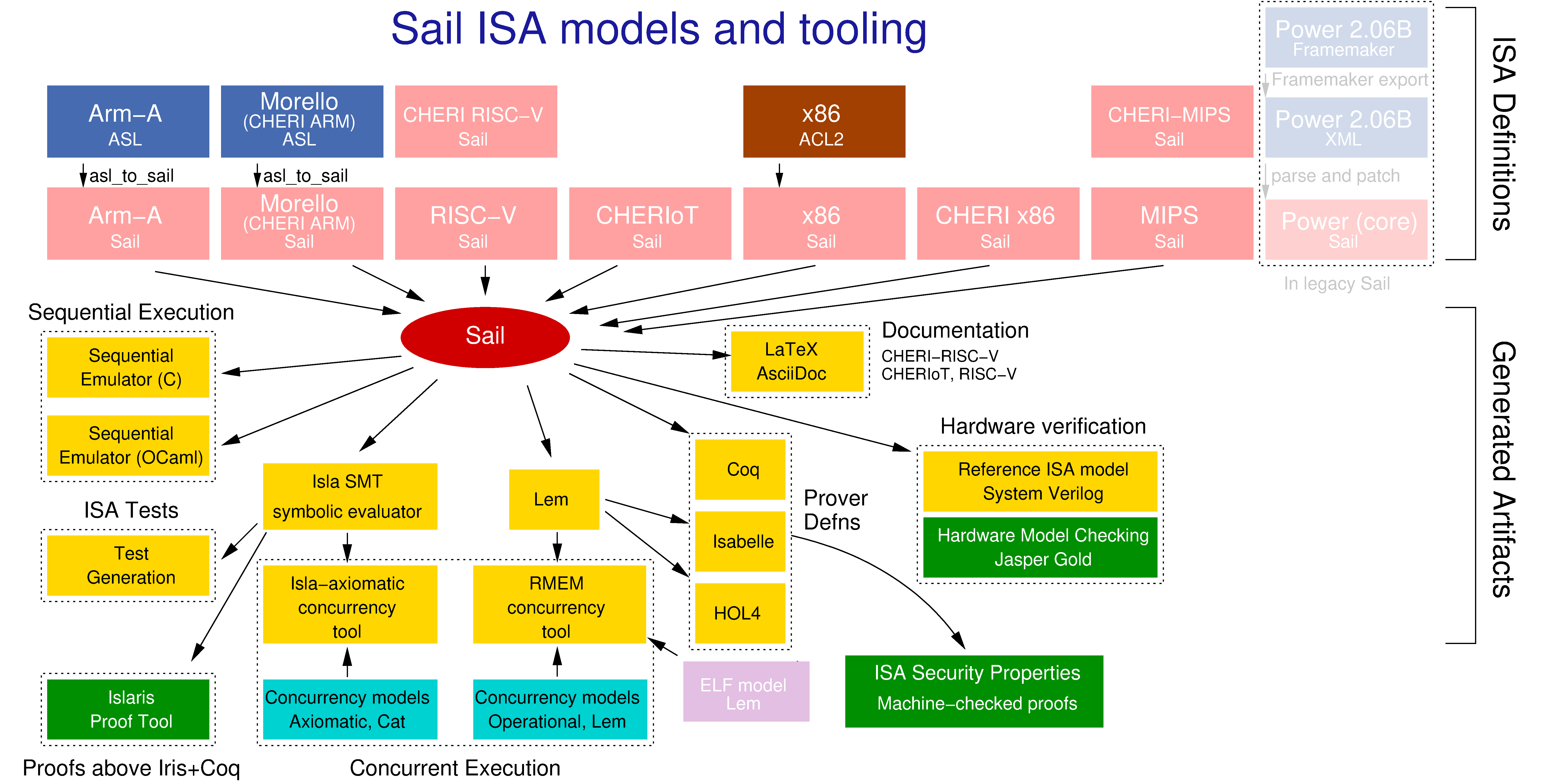

Image: REMS Project · Sail ISA models and tooling. Wider Sail ecosystem; not an EVM Sail integration list.
evm-sail · Tau Lepton
03 · Results

What have we achieved?

  • Executable specification: run the model and compare its behaviour with execution-specs.
  • Multiple execution targets: reference and optimized execution from a shared Sail model.
  • Proof-assistant outputs: Lean and Rocq definitions provide a starting point for proofs.
Implemented capabilities, not end-to-end verification. Sources: Targets · Reviewed CI run.
evm-sail · Tau Lepton
03 · Challenges

What has been difficult?

Semantic coverage
Correct instructions are only part of correct transaction and block execution.

Proof usability
Generating definitions is easier than making them convenient to reason about.

Execution performance
A clear specification still needs to run efficiently enough to test and use.

Sources: Model scope · Engineering experience.
evm-sail · Tau Lepton
05 · Proof-assistant extraction

One model, multiple proof environments

The benefit

Reuse the Sail specification in Lean and Rocq.

Spend proof effort on properties rather than rewriting the entire model.

The cost

Generated definitions are not always proof-friendly.

External assumptions and changes to generated output still need careful management.

Result: proof work can start from the model; extraction alone does not prove correctness.

Source: Extraction targets and external boundaries.
evm-sail · Tau Lepton

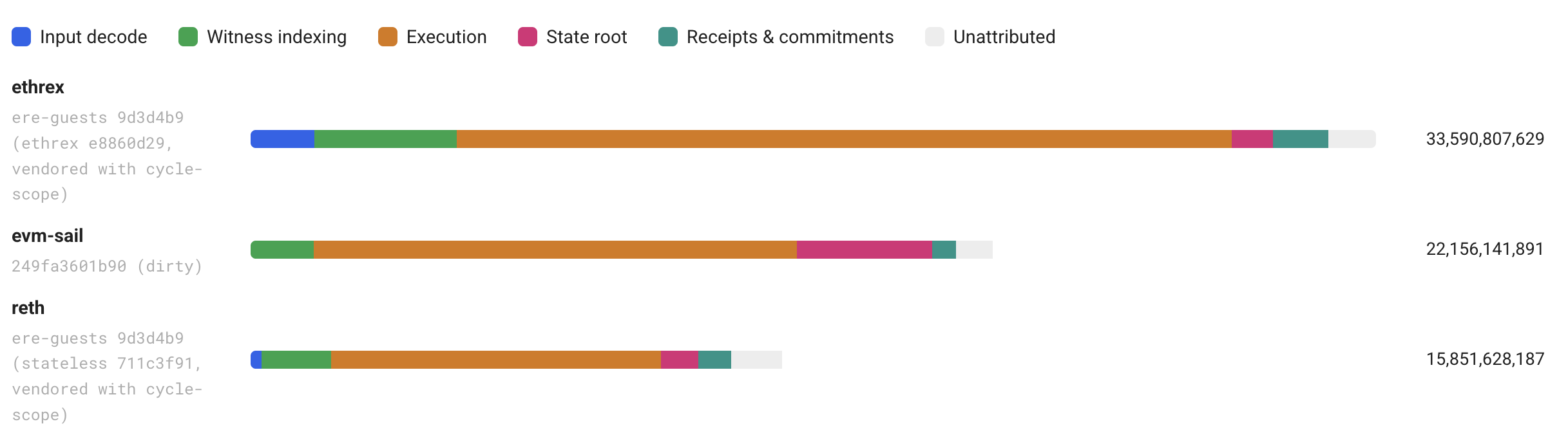

06 · Modified compiler and performance

Making the model practical to run

  • Type-driven lowering: semantic types become machine types. The compiler uses the model’s types to choose efficient execution representations.

evm-sail · Tau Lepton
07 · Future refactor · proposed direction

What we would change next

Clearer execution boundaries
Make the machine, transaction, and block responsibilities easier to isolate.

Proof-friendly interfaces
Expose smaller correctness claims that can be connected.

Performance-aware structure
Keep efficient execution and a readable specification viable together.

Intended payoffs: clearer scope, easier proofs, faster iteration.

evm-sail · Tau Lepton

Section 1 — introduction. Provisional 30-minute technical talk, excluding Q&A. I'm a zkEVM research engineer at the Ethereum Foundation, and I'm interested in formally verifying the EVM. This talk is about building a formal specification in Sail: what worked, what proved difficult, and how that experience is shaping the next version. Draft based on evm-sail adc44afd21ef6d5a45c96046f0d23f527acbf54e, inspected 2026-10-15.

Follow the execution pipeline: the EVM RV64 guest program is transpiled to the zkVM ISA guest program, which runs on the zkVM. The zkVM feeds the proof system. This is the architecture motivating verification, not a claim of completed proofs.

Nesting illustrates ordinary transaction execution. Block system operations can also invoke the machine. The key point is scope, not the detailed call graph.

Sail is a language for describing instruction-set semantics, with executable and proof-assistant outputs. Walk the diagram from ISA models to Sail, then follow only the executable-emulator and theorem-prover paths. The figure includes Coq, Isabelle and HOL4; EVM Sail's inspected proof targets are Lean and Rocq. Do not imply every pictured integration is implemented here.

Distinguish execution, differential testing, and proof. These are different kinds of evidence. Do not claim full test-suite conformance or complete EVM correctness.

Frame these as lessons from building the workflow. The next slides explain their consequences, without descending into instruction implementations.

There are narrow existing proof examples, but no complete EVM correctness result. Do not present extraction as a verified source-to-binary compilation pipeline.

Semantic types express what values mean in the model; machine types determine how execution stores and manipulates them. Type-driven lowering connects the two. The optimized EVM-word representation uses four 64-bit limbs. This is a compiler design choice, not an end-to-end correctness proof or a measured speedup claim.

These are proposed priorities for discussion, not a committed implementation plan. The actual refactor and its proof milestones still need presenter confirmation.
